Bell UH-1H “Huey” Helicopter

DSC04915

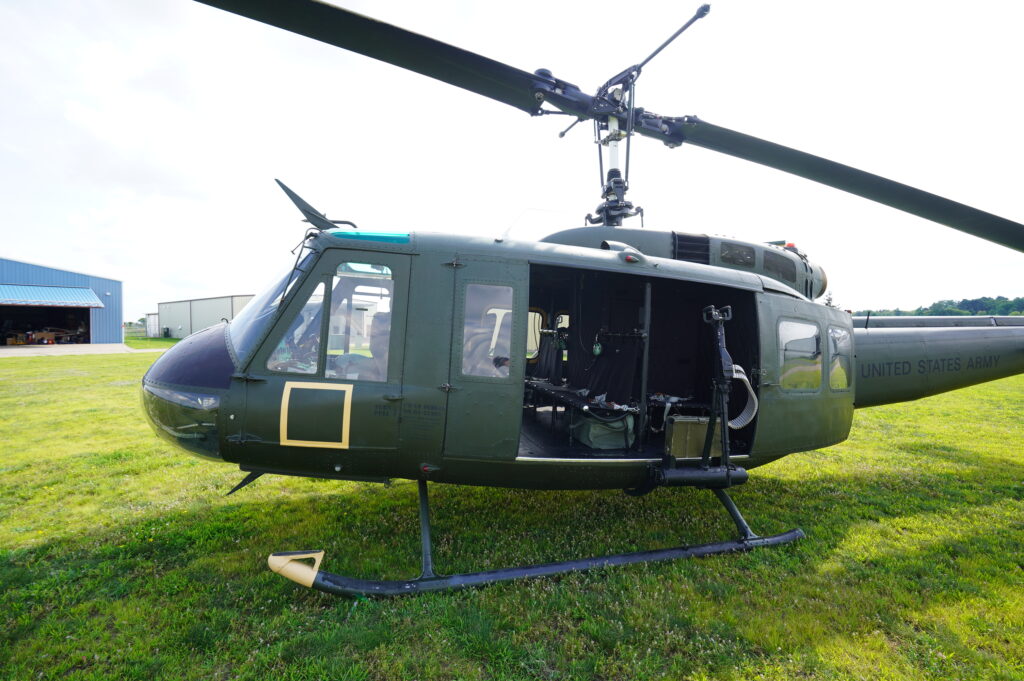

DSC04913

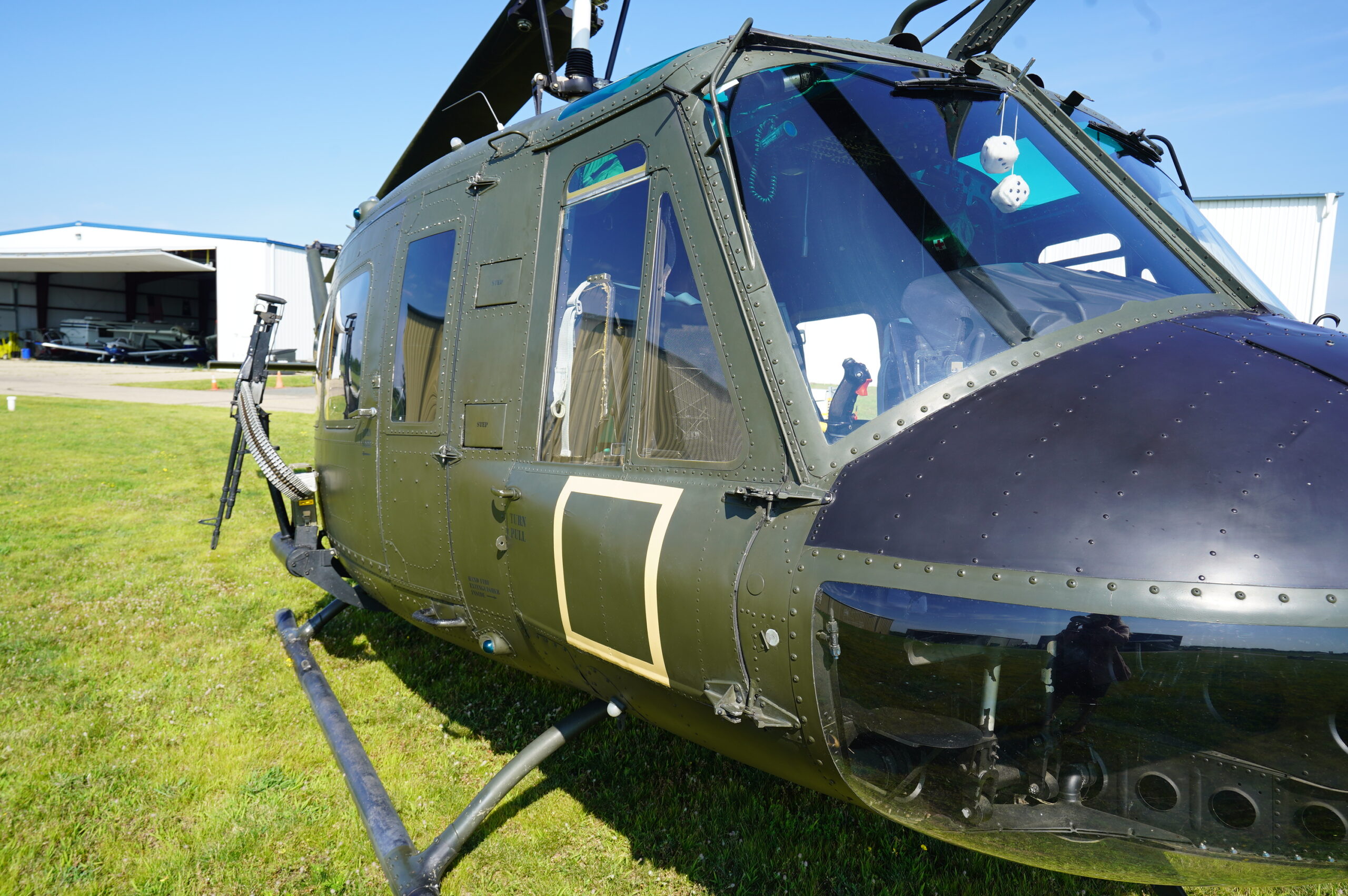

DSC04797

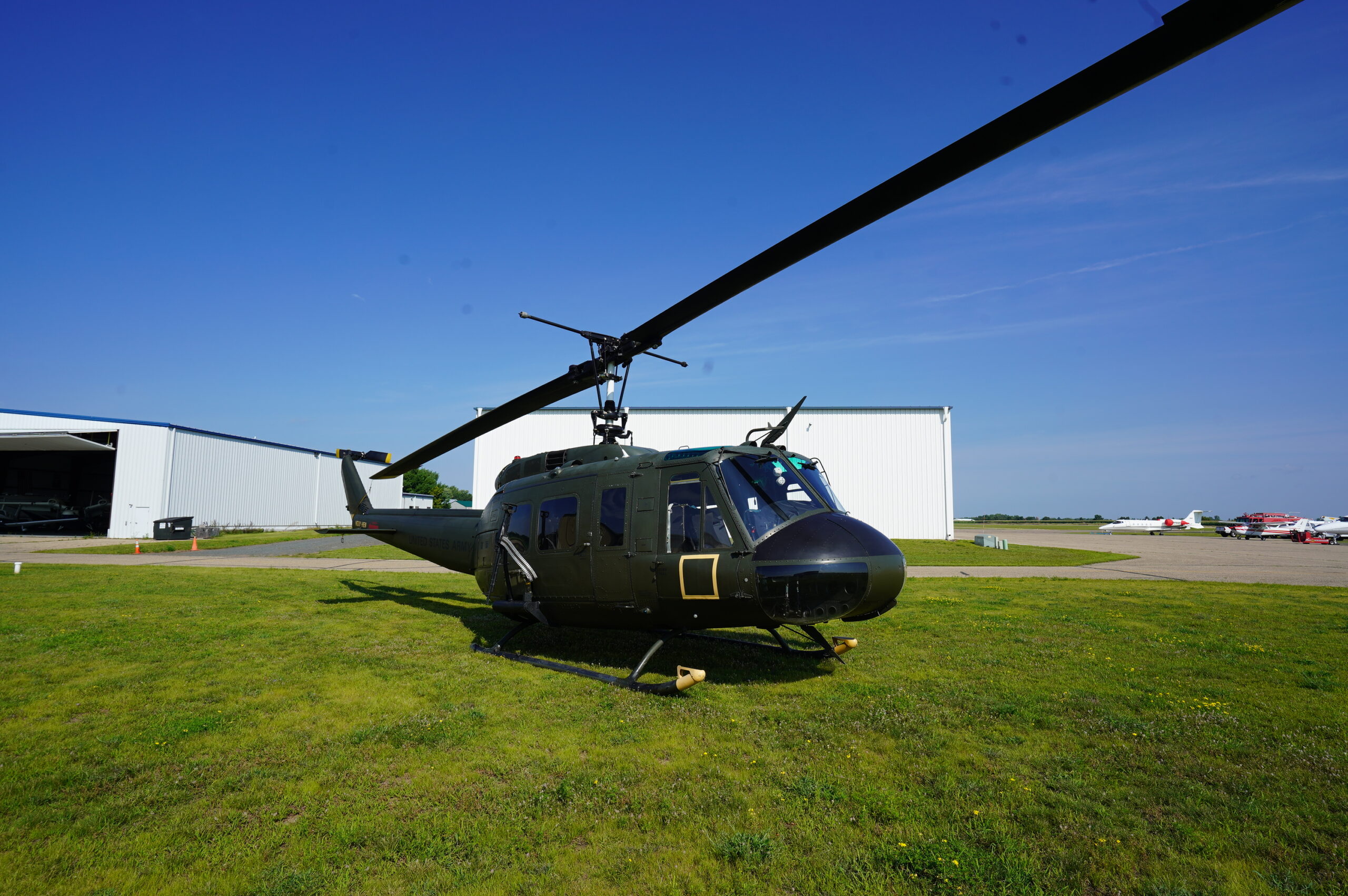

DSC04789

DSC04750

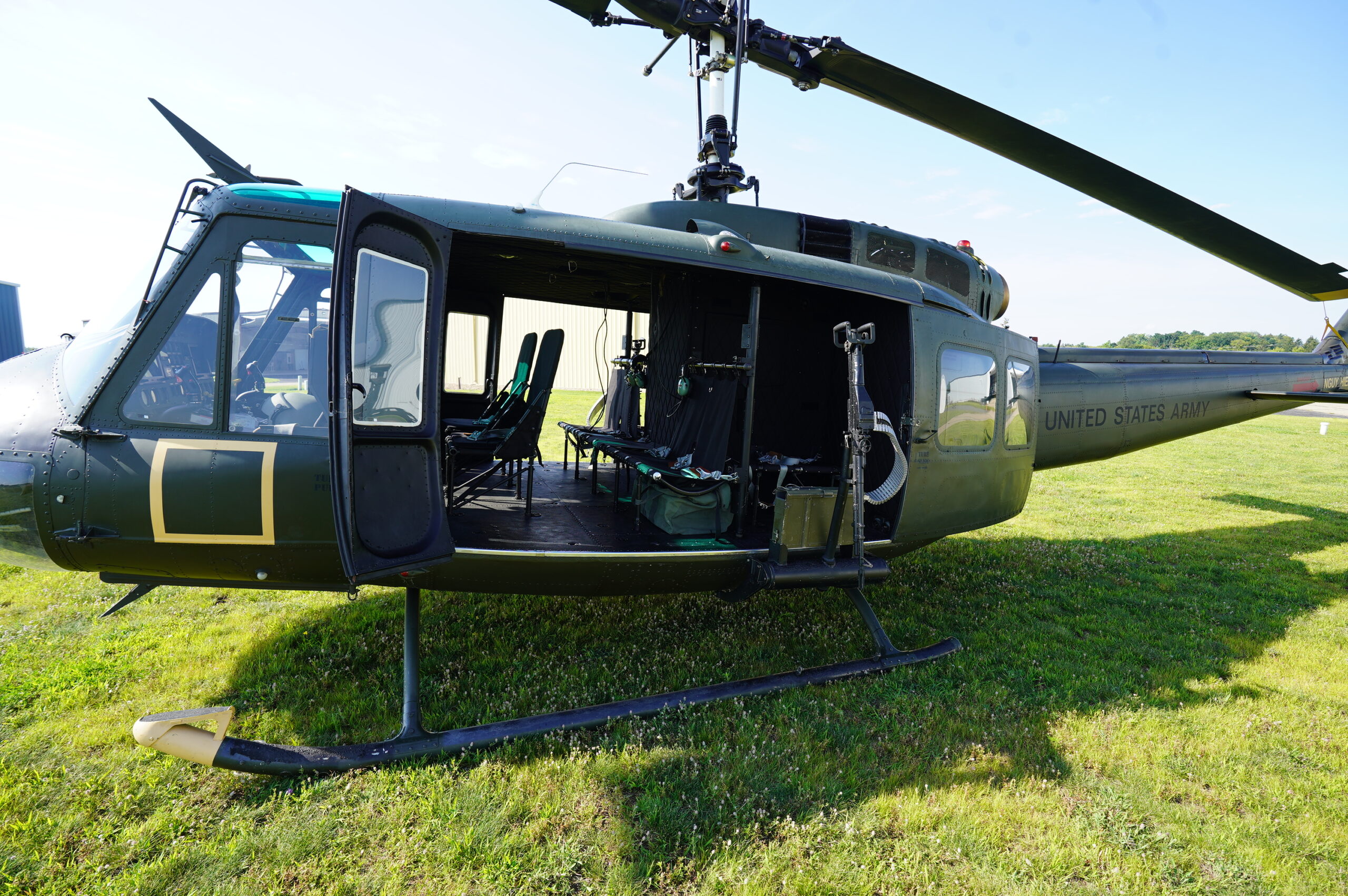

DSC04741

DSC04736

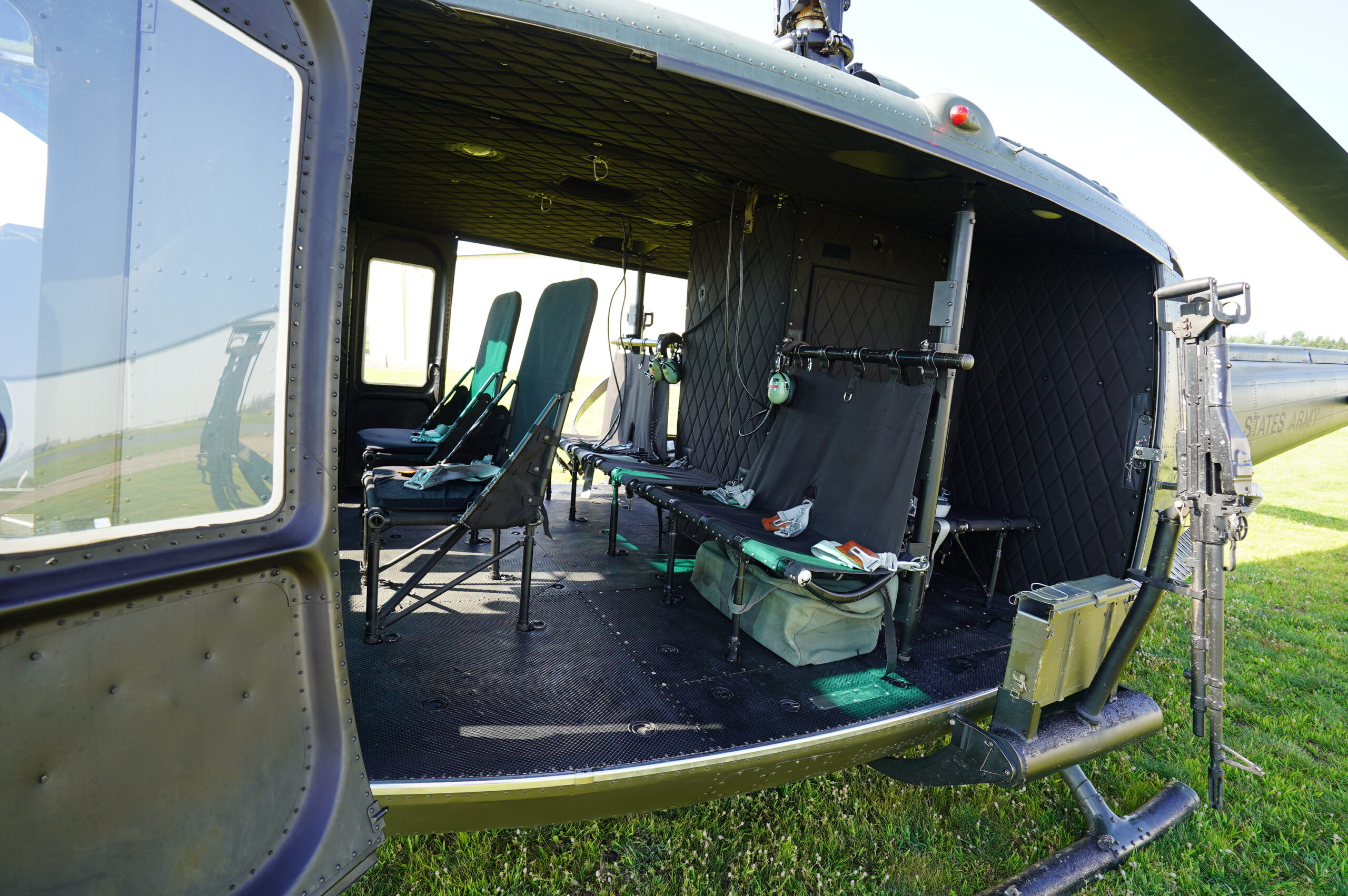

DSC04734

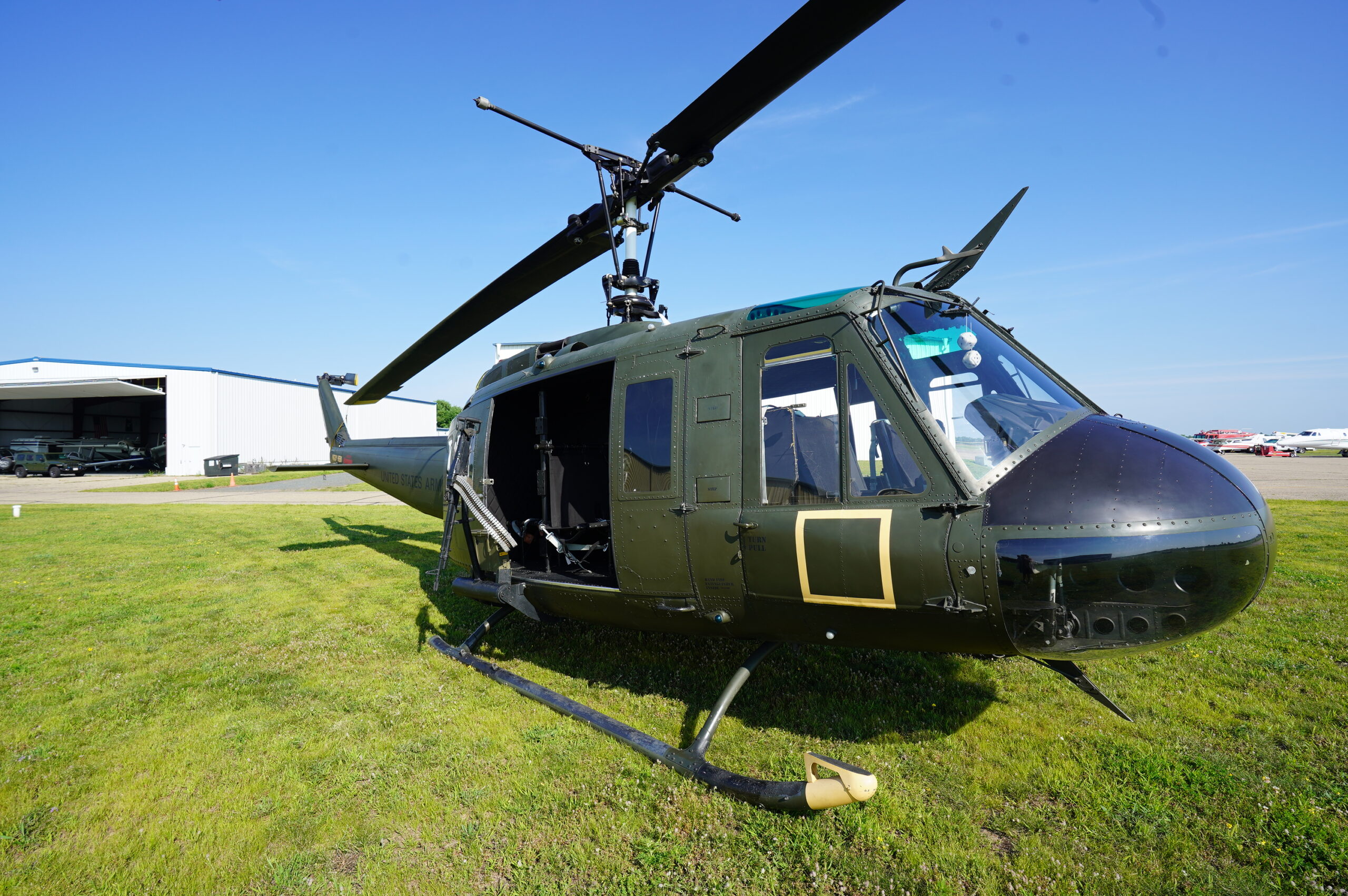

DSC04704

DSC04698

Avionics_2

Avionics_1

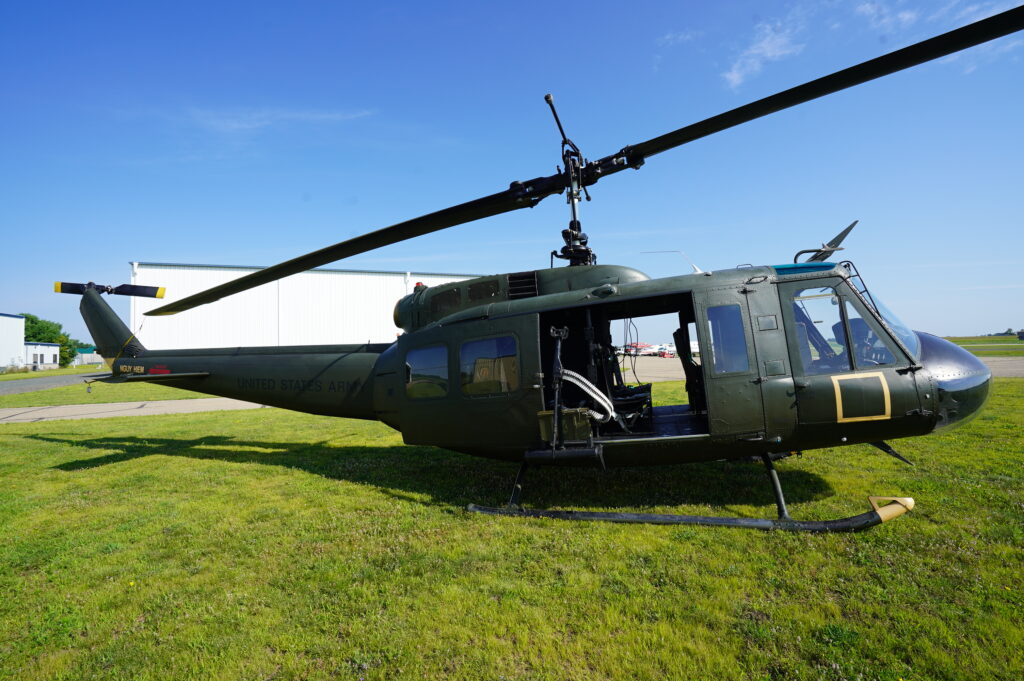

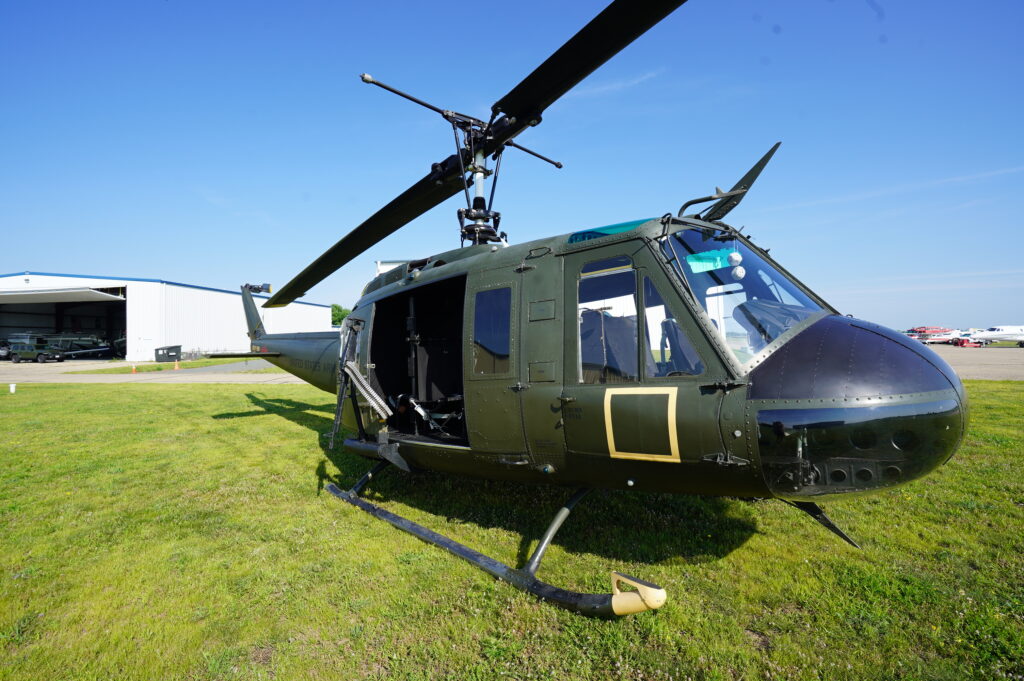

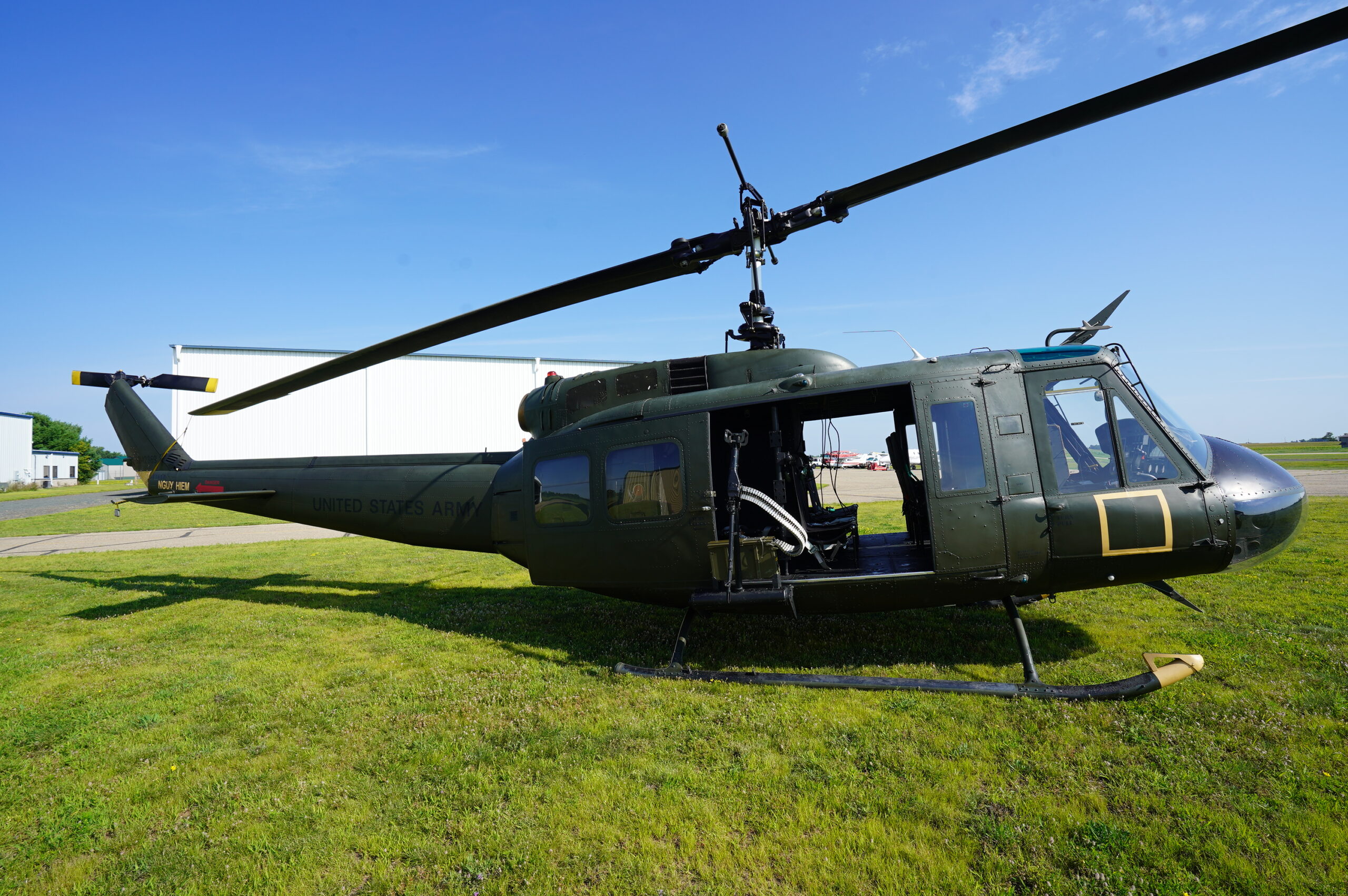

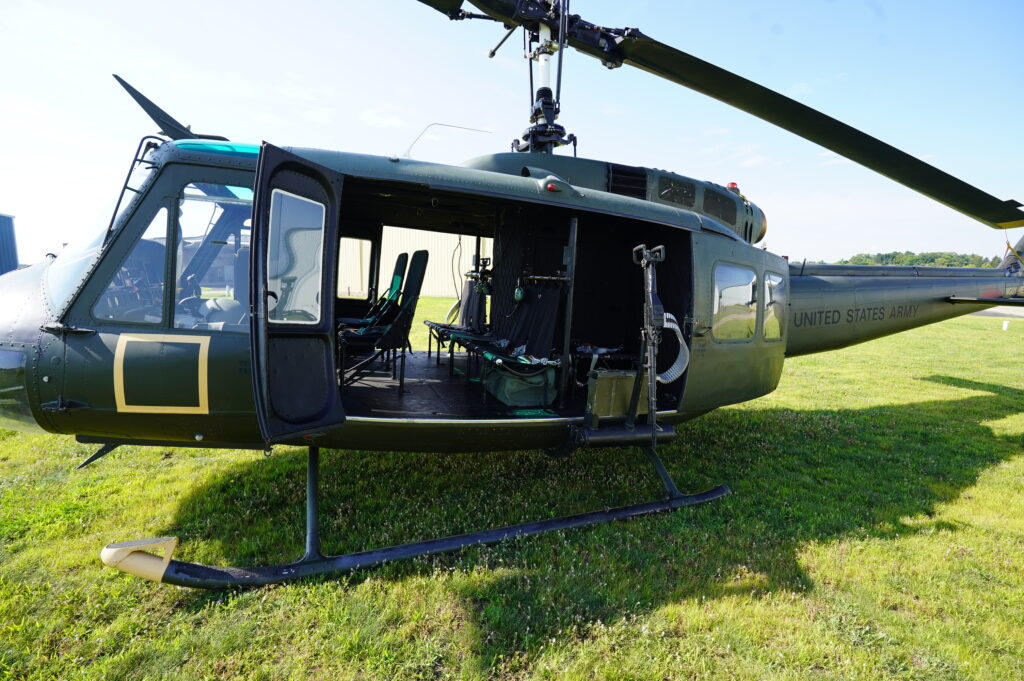

Own a iconic piece of history! N14SD is believed to be the world’s oldest flying UH-1D/H today, with active Vietnam combat hours between 1966 & 1967, followed by active flight school training at Hunter Army Airfield.  Fully restored by Northwest Helicopters as a show machine between 2005-2015, this Huey spent time as a movie star and was purchased by Combat Helicopters in 2015, the last 8 years and approximately 700 hours of use have been spent honoring Veterans throughout the Midwest.  The nostalgic Huey lives on today, vintage replica Army Green Paint, including symbolic Vietnam markings and armor seats, a custom Garmin Glass Avionic suite brings modernized navigation and enhanced safety to this prolific Vietnam icon.  Turn your dream into reality, with many low component times and a freshly overhauled transmission, N14SD is ready for her next adventure!

Overhauled Components (Time Remaining)

Engine  (2400 TBO)     1547.1     Main Rotor Hub        509

Engine Hot Section       472.9      Main Input Quill        803.4

Gear Box 90 Degree      539.1      Mast Assembly           1472.4

Gear Box 42 Degree      1337        Scissor & Sleeve Ass   511.4

Main Transmission       1970       Swashplate & Supp      511.4



Time Life Components (Time Remaining)

TR Blades         211                  Oil Cooler Bearings     572

MR Blade 1      446.6               Rotating Bolt Kit         473.2

MR Blade 2      651.6               TR Bearings                  534.9

Elevator Horn 509.5               TR Yoke                        371

MR Yoke          511.4               TR Grips                       1371.3

MR Trunnion   14,311             Clevis 1&2                    1985.4

Elevator LH     1339                Master Pole                 12,130

Elevator RH     1985                Stab Bar Center Frame 12,575

Sissor Assy 1     580.4               Fittings 1B1                 785.4

Sissor Assy 2     2782.4             Fittings 1B2                 785.4



**Component times subject to change, Specifications to be verified by Purchaser

Contact:
Brittnie Brink
651.402.0424
sales@elevatedaircraft.com

Inquire

This field is for validation purposes and should be left unchanged.

Airframe

Registration Number N14SD
Serial Number: SN: 62-12369
Annual Status:
Total Time: 8150 SNEW / 700 Since Restore by NWH
Year: 1962
Additional Details:
Price: $1,350,000

Engine

Model: T-53 1400 SHP
Engine Time: 852 SMOH / 127 SHSI / 4104 SNEW

Propeller

Model:
Propeller Time:

Avionics

  • 2017 Avionic Refurbishment
  • New Custom Fabricated Instrument Panel
  • Dual Garmin G3X Touch 10.6” Landscape
  • Dual Garmin GTN 650 GPS/Com/Nav
  • Garmin GTX 345 Transponder -ADSB Traffic out & in / WX
  • Garmin GMA 350C Audio Panel
  • Push to command voice control
  • Garmin GLD 69A XM WX / Radio
  • Garmin GTS 800 Traffic (Active)
  • Dual Garmin G5 E.F.I.
  • Dual USB Charger(s) w/ 2 ports
  • Dual DC 20 amp Power Port(s)
  • 406 MHz ELT
  • PAX “listen only intercom”
  • Music Input

Modifications

  • Improved Vertical Fin Spar-Global Helicopter  tech.

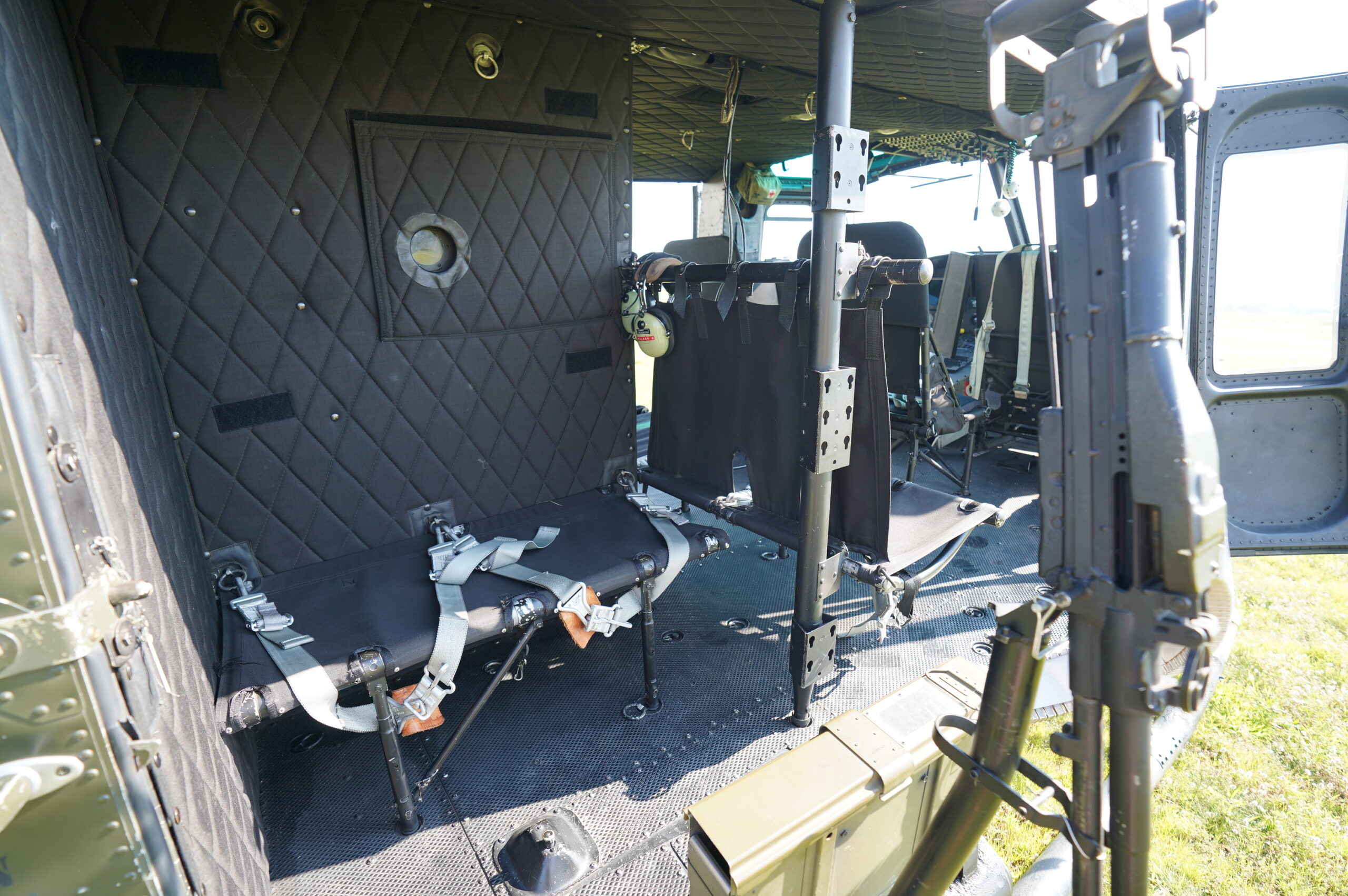

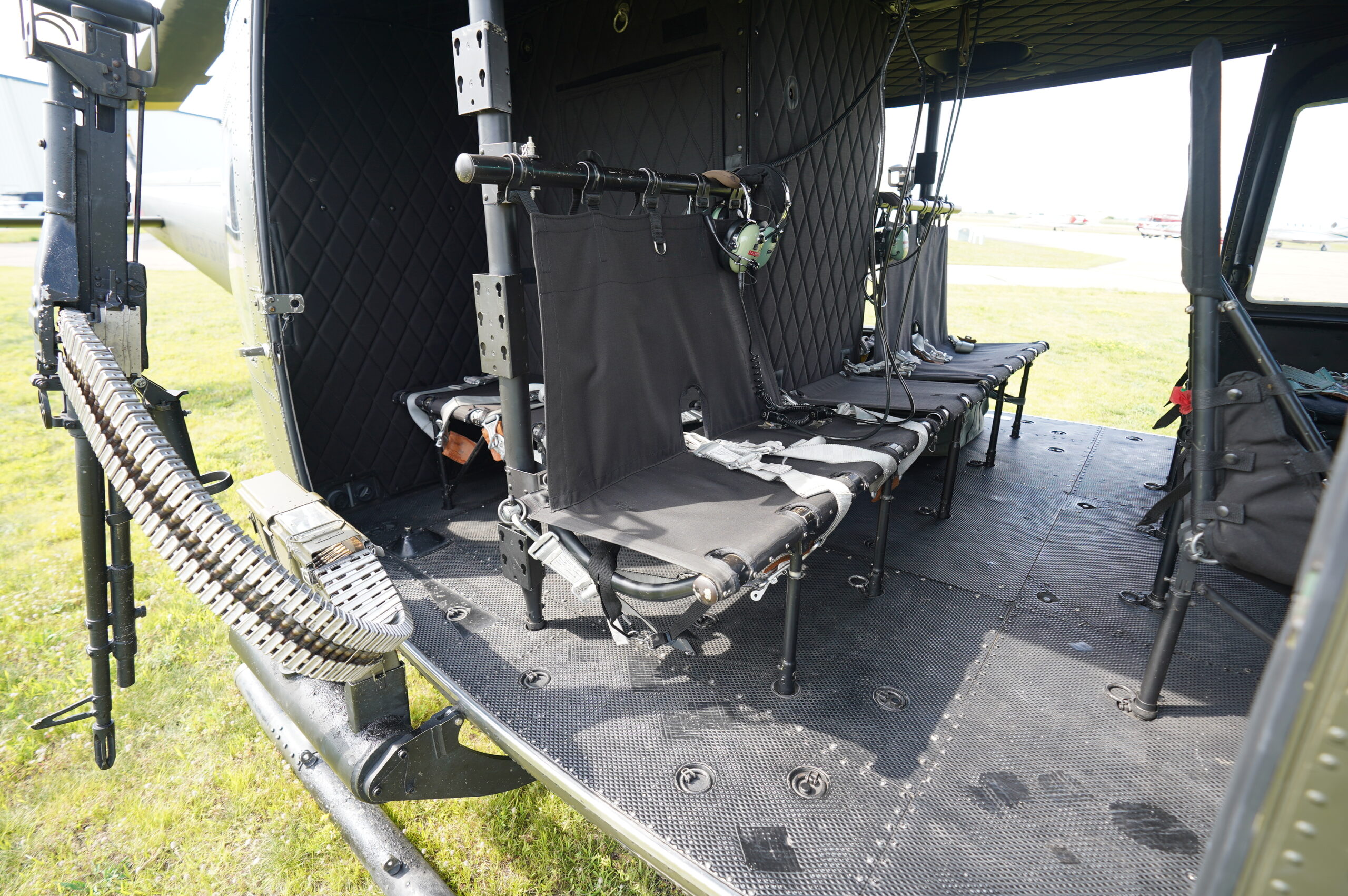

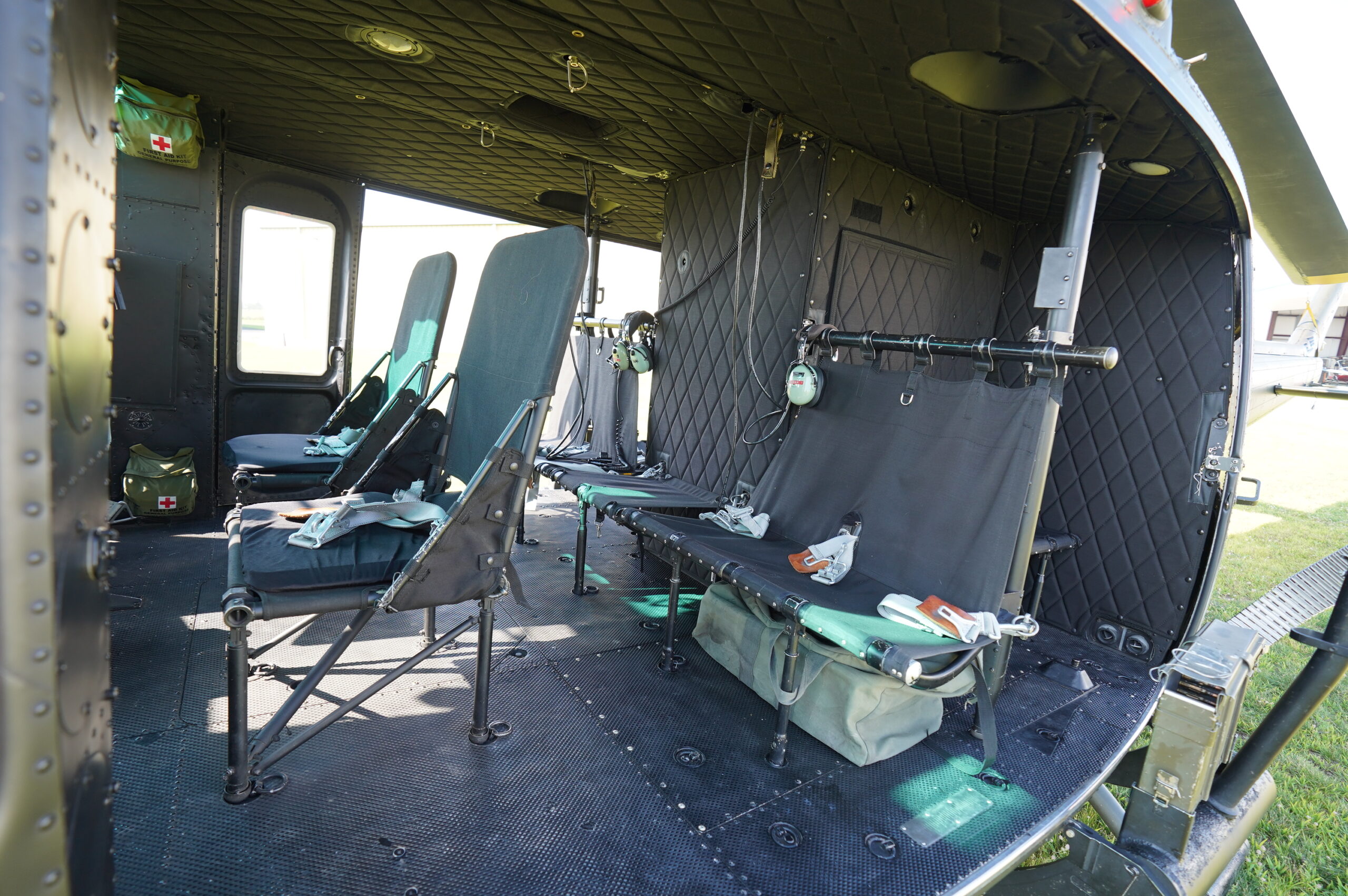

  • Full 13 Person Interior
  • Armor Seats
  • Low Skid Gear
  • Glass Windshields
  • Artic Cabin Heater
  • Certified in Exhibition Category
